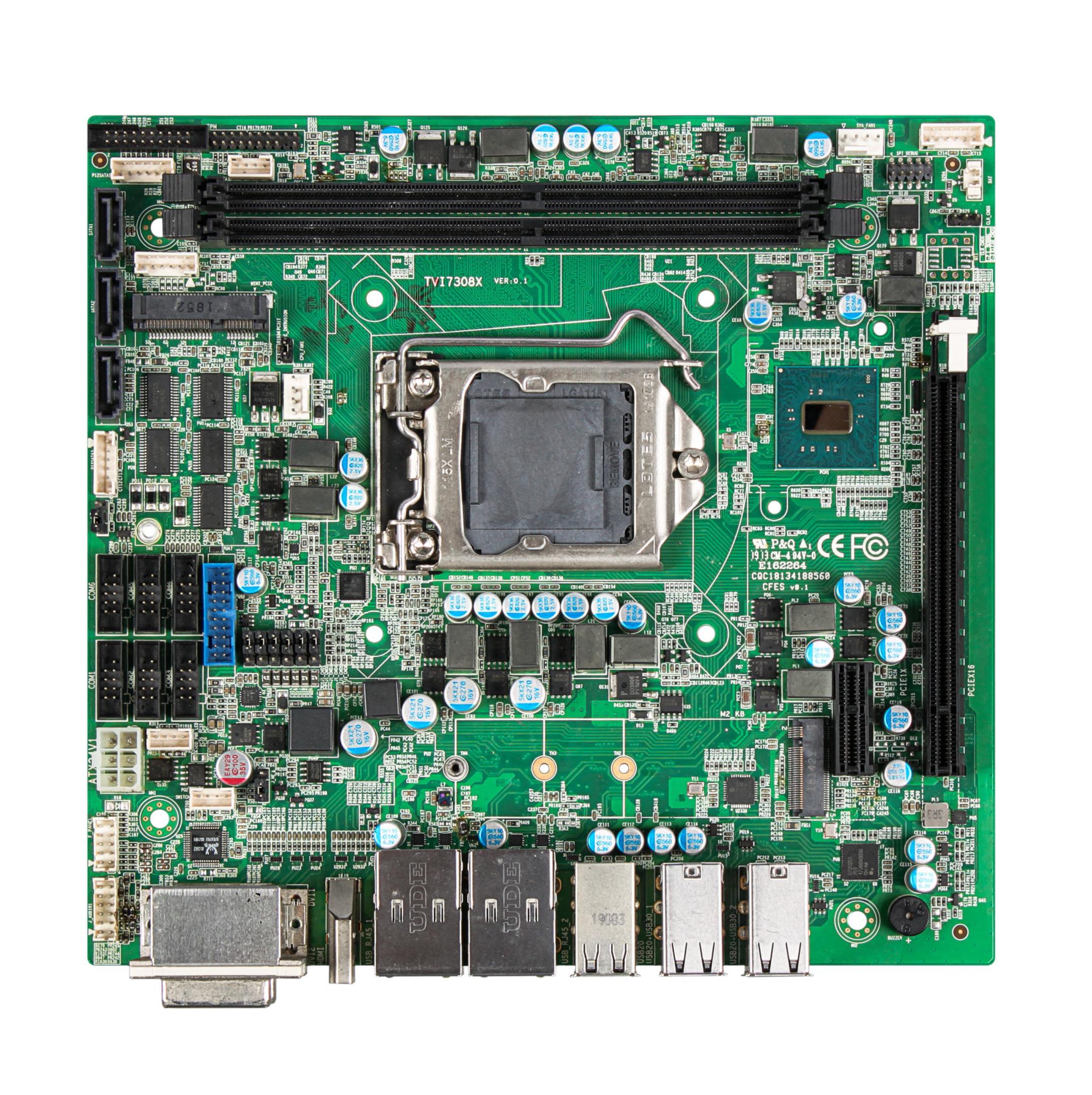

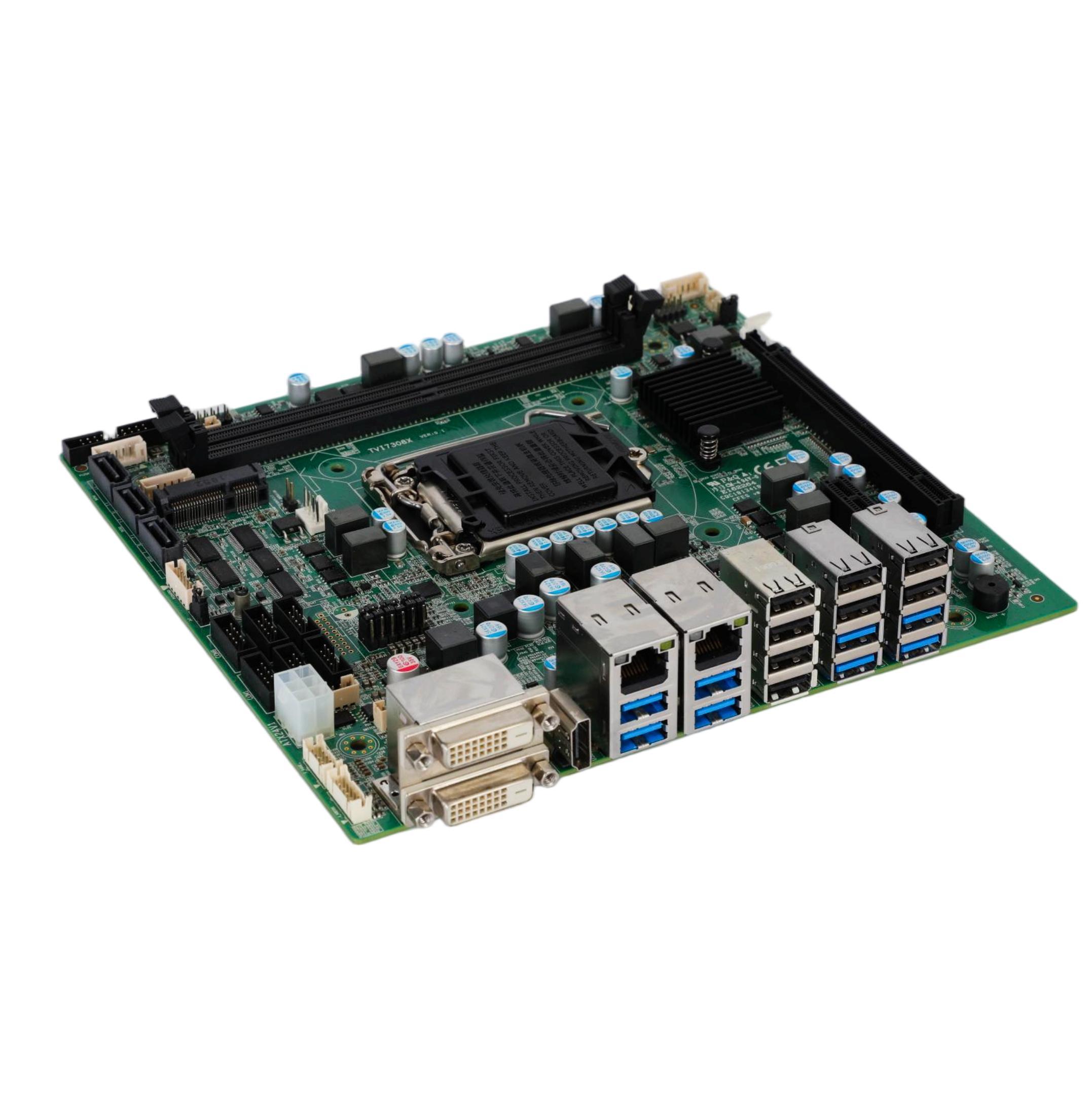

TVI7308X
- Financial-grade compatibility: Perfectly supports Windows 7 system and is compatible with traditional financial software
- Dual display interface: HDMI+DVI dual-channel output, meeting the dual-screen business needs of the counter
- Large memory support: Up to 32GB DDR4, smoothly running large database applications
- Rich expansion slots: M.2+SATA+multiple USB3.0, supporting cash boxes/card readers and other peripherals
- Main parameters
- Application Manual
- Doc Download
-
Product Model
TVI7308X Product Description
High-Performance Low-Power Motherboard Processor
CPU Intel® Core™ i7/i5/i3/Pentium/Celeron GPU None NPU None Operating System
Win7/win10 Memory
DDR4 16GB-32GB Storage
SATA III，M.2 SSD Network and Connectivity
Wired Network 2*RJ45 Cellular Network None Wireless Network None NFC None Bluetooth None Audio/Video
Display Unit None Speaker None Camera None I/O Interfaces and Display Interfaces
SATA Interface 3*SATA，5*SATA Power Interface GPIO 1*GPIO Audio Interface 1*Audio SIM/TF None USB Interface 8*USB3.0，8*USB2.0 Display Interface 2*DVI-D，1*HDMI SD Card Interface None Other 1*M.2，1*mini PCie，1*F_PANEL,1*TPM，1*BIOS debug，1*LED Interface，1*CPU Fan Interface，1*Bottom Fan Interface Serial/Parallel Port 6*COM Buttons
None Power Supply
24V Battery
RTC Battery Operating Environment
Operating Temperature: 0-45℃ Storage Temperature: -20~65℃, Relative Humidity 95% Dimensions
190MM * 205MM Weight
Certification
None Standard Accessories
None
