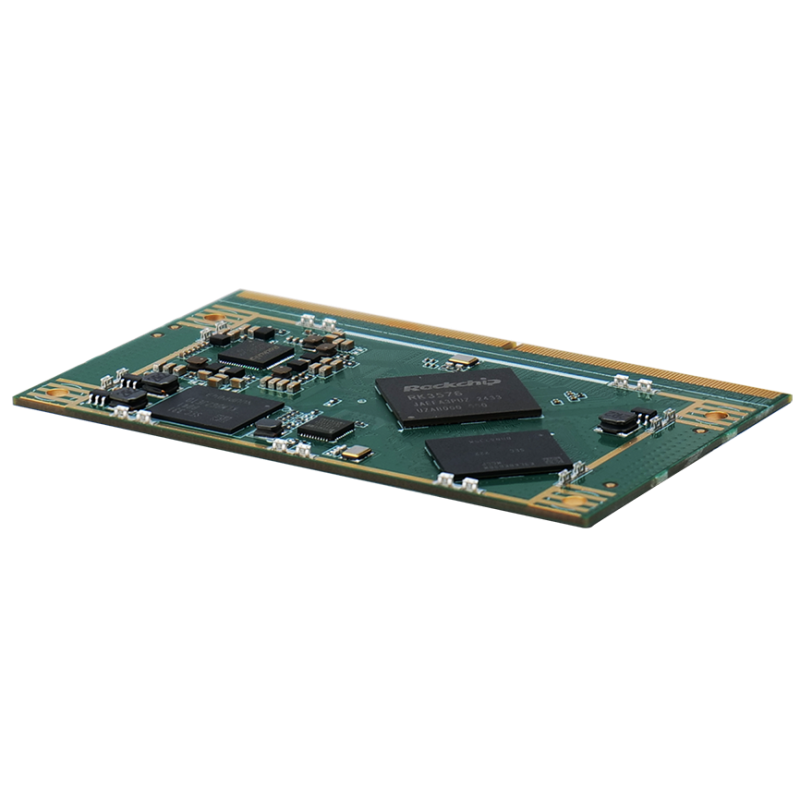

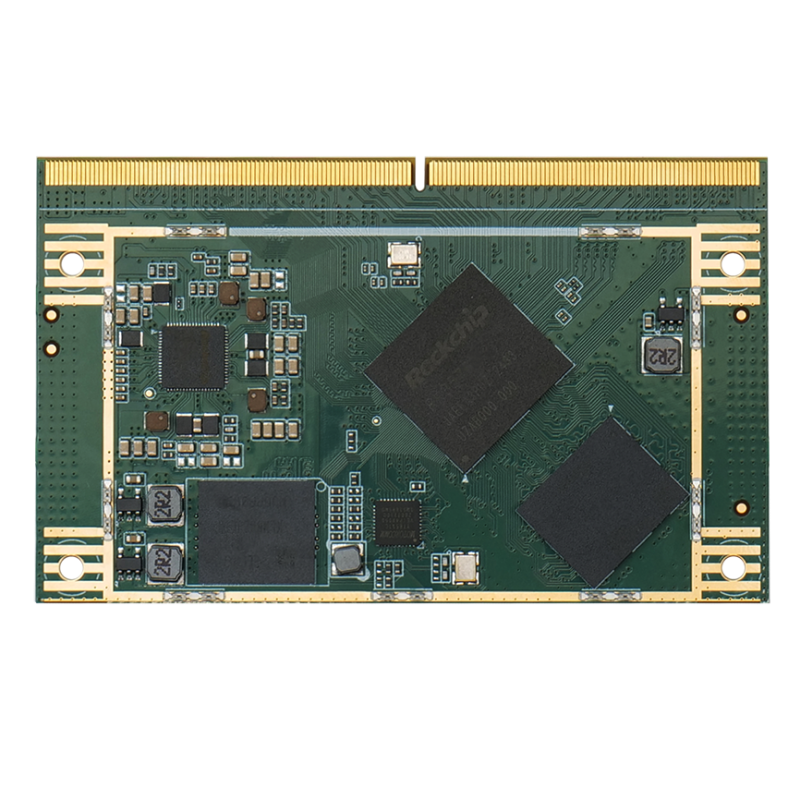

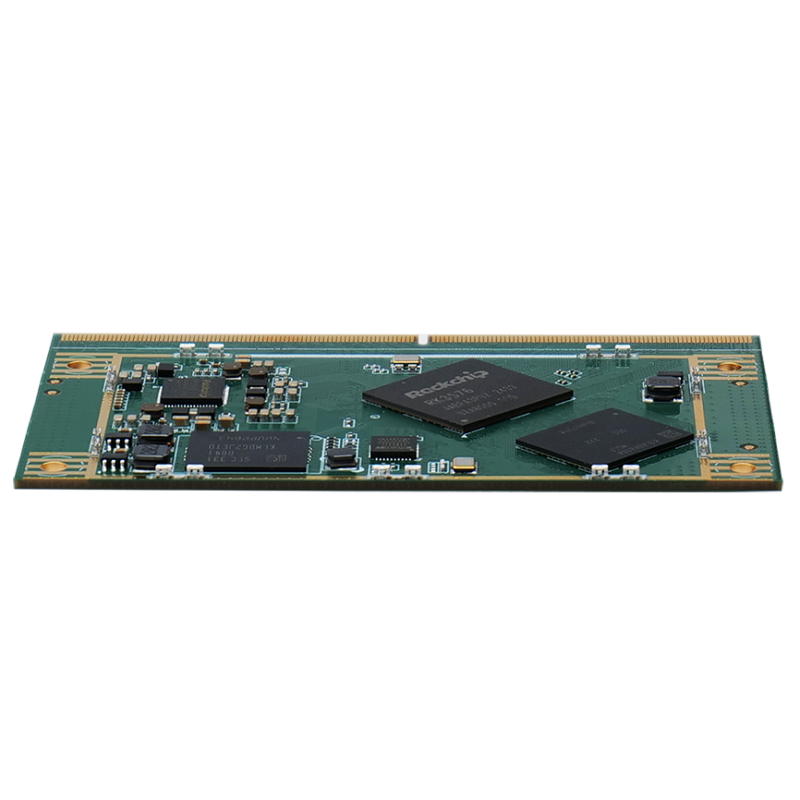

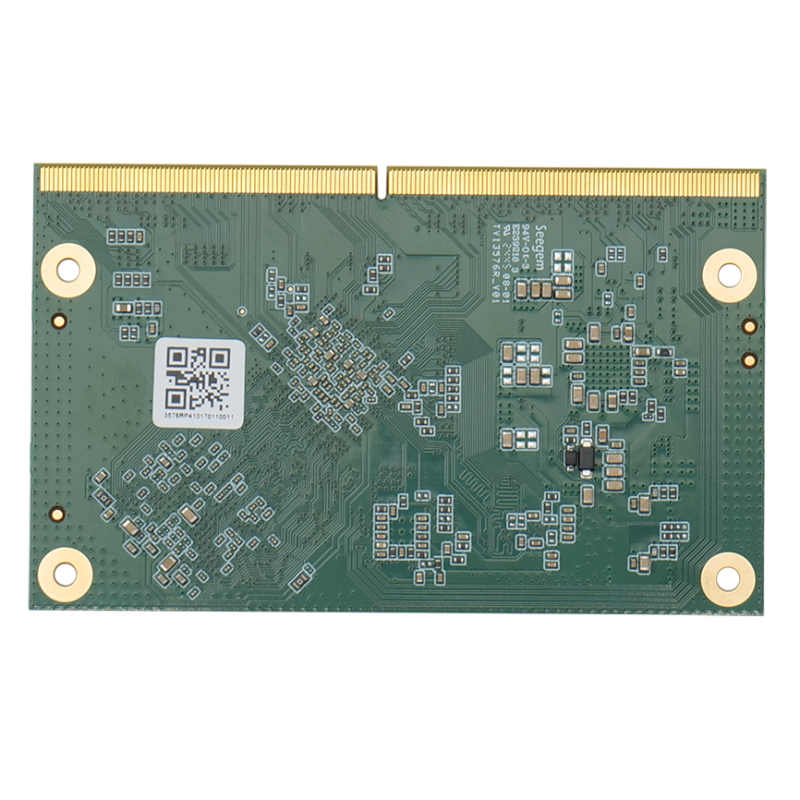

TVI3576R
- Based on the RK3576 processor, featuring a quad-core Cortex-A72 and a quad-core Cortex-A53, clocked at 2.2 GHz.
- Rich interfaces for flexible expansion; the MXM‑interface core board features a modular design, supporting a wide range of peripherals and storage expansions to meet diverse application requirements.
- Equipped with the ARM Mali-G52 MC3 graphics processor, it supports high-resolution displays, delivering a smoother and more refined multimedia experience.
- The MXM interface core board features a low-power design and also delivers high performance and flexibility.
- Main parameters
- Application Manual
- Doc Download
-
Product model
TVI3576R
Product Description
Huiwei MXM Interface Core Board
Processor
CPU
RK3576 quad-core Cortex-A72 + quad-core Cortex-A53, 2.2 GHz
GPU
ARM Mali-G52 MC3
NPU
6 TOPS of computing power
Operating system
Android 14, Debian 11
Memory
LPDDR5 4GB/8GB
Storage
eMMC 32GB, 2×SATA (optional)
Network and Connectivity
Wired network
1* RJ45 Gigabit Ethernet port, 2*RGMII/RMII
Cellular network
None
Wireless network
1*M.2 Key-E for WIFI socket
NFC
None
Bluetooth
None
Audio and video
Display unit
1*HDMI, 1*DP, 1*eDP, 1*RGB, 1*MIPI DSI TX
Speaker
None
Camera
None
I/O Interface and Display Interface
SATA interface
None
GPIO
None
Audio interface
None
SIM/TF
None
USB port
2*USB3.0
Display interface
1*HDMI, 1*DP, 1*eDP, 1*RGB, 1*MIPI DSI TX
SD card interface
None
Other
2 * PCIe
Serial port/Parallel port
10*I2C, 12*UART, 5*SPI
Button
None
Power supply
DC_In 4.2V
Battery
None
Work environment
Temperature: 0°C to 60°C; Humidity: 5%–90%, non-condensing.
Size
82mm*50mm
Weight
18.7g
Authentication
None Standard accessories
None
