TVD3516X
- Powerful AMD Core: Based on the AMD Ryzen R2314 processor, featuring a 4-core, 4-thread design with a maximum boost clock speed of 3.50 GHz for ultra-fast responsiveness.
- Featuring an ultra-low-power design, it has a TDP of only 12W, a compact size, and a lightweight build for easy portability.

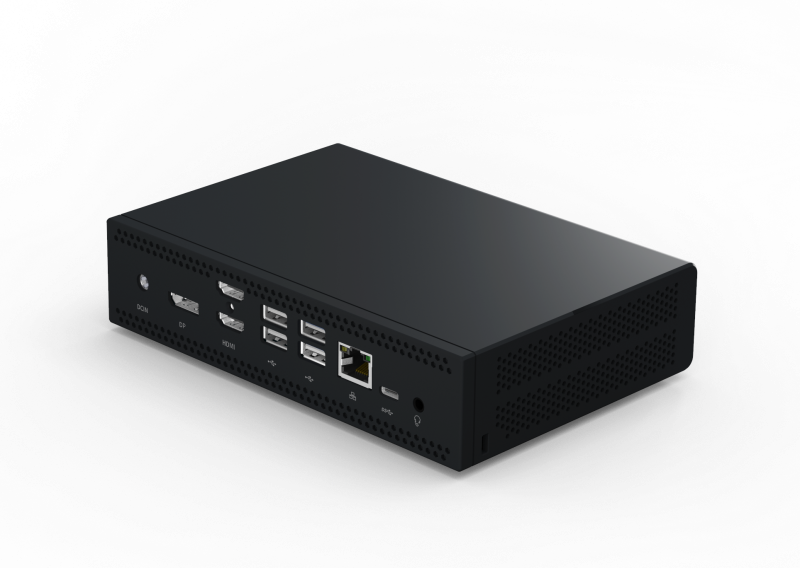

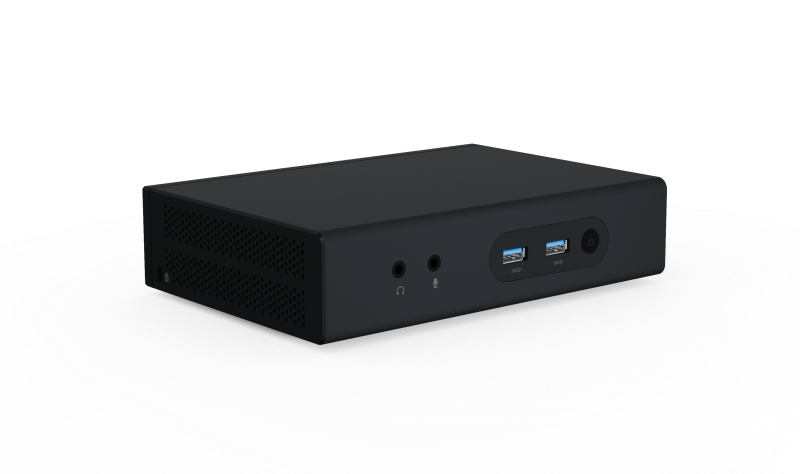

- Equipped with a wide variety of interfaces, including Gigabit Ethernet ports, USB ports, audio interfaces, DP, and HDMI ports, to meet diverse needs.
- Equipped with integrated HDMI and DP display interfaces, and featuring a high-performance AMD Radeon Vega 6 graphics processor, it delivers a smoother and more refined gaming and multimedia experience.
- Main parameters
- Application Manual
- Doc Download
-
Product Model
TVD3516X Product Description
Thin Client Processor
CPU AMD Ryzen R2314，4 cores 4 threads GPU AMD Radeon Vega 6 NPU None Operating System
Linux, Windows 10/11 Memory
4 x DDR4 4GB / 8GB Storage
EMMC 64G （Support M.2 SATA/PCIE 2280） Network and Connectivity
Wired Network 1*RJ45，10/100/1000Mbps Cellular Network None Wireless Network None NFC None Bluetooth None Audio and Video
Display Unit 2*HDMI，1*DP Speaker None Camera None I/O Interfaces and Display Interfaces
SATA Interface None GPIO None Audio Interface 1*Line out、1*MIC_in、1*AUDIO SIM/TF None USB Interface 2*USB 3.0、4*USB2.0 Display Interface 2*HDMI、1*DP SD Card Interface None Other 1*Type-C Serial/Parallel Port None Buttons
1*Power button Power Supply
DC_In 12V3A Battery
None Operating Environment
Temperature 0℃~60℃，Humidity 5%-90% Dimensions
180mm*124mm*40mm Weight
530g Certification
CCC Standard Accessories
Power Cord
