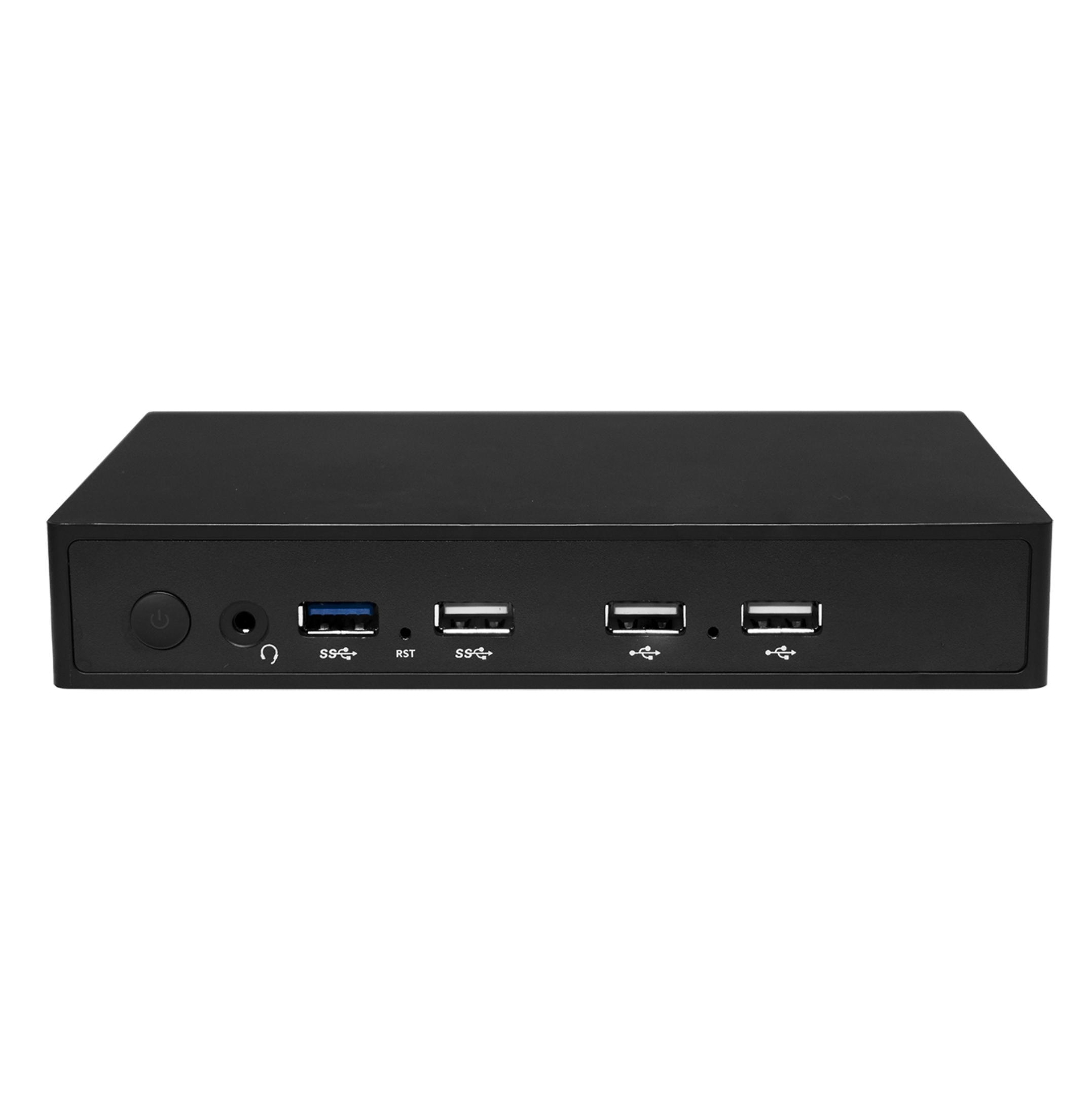

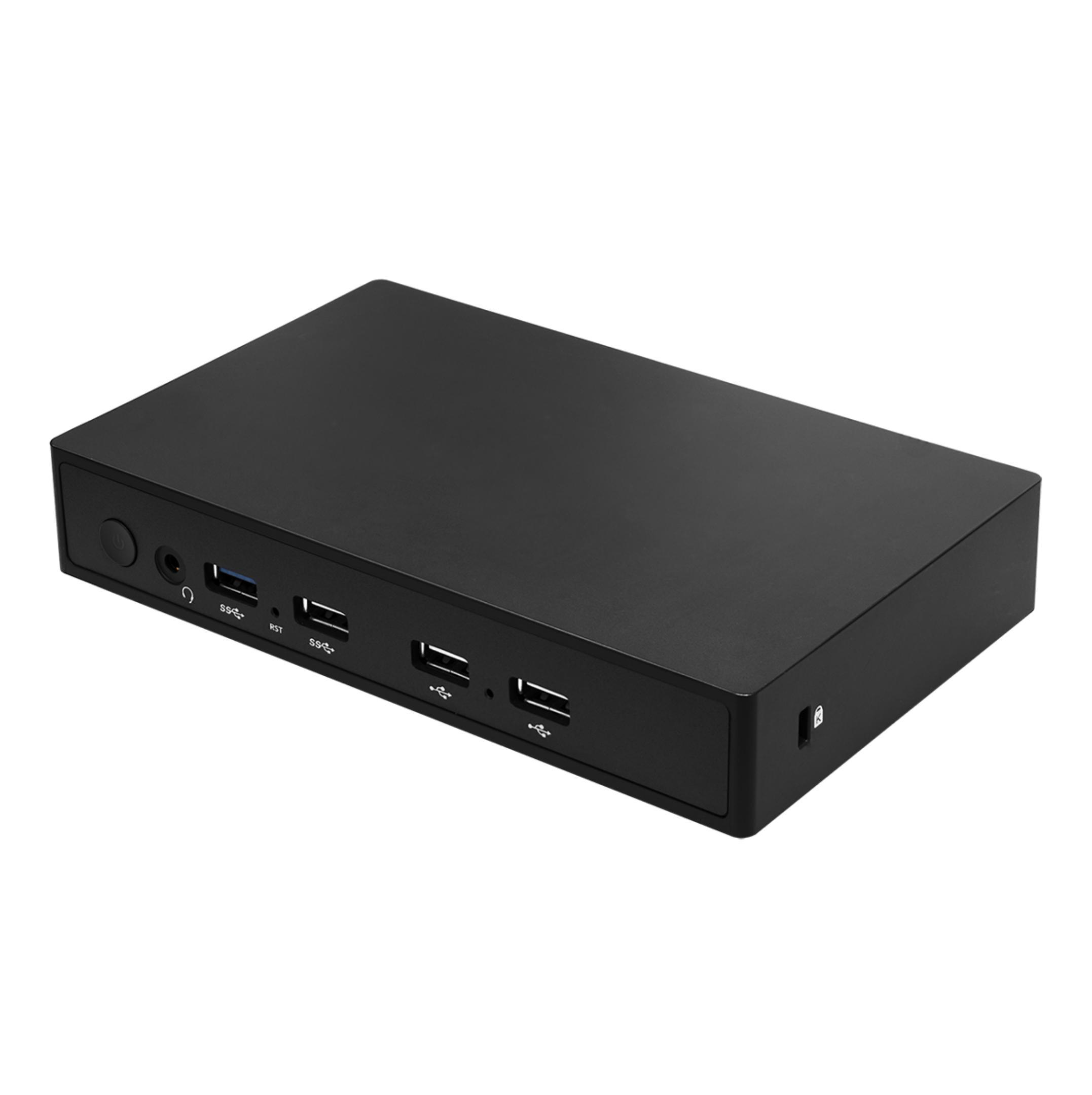

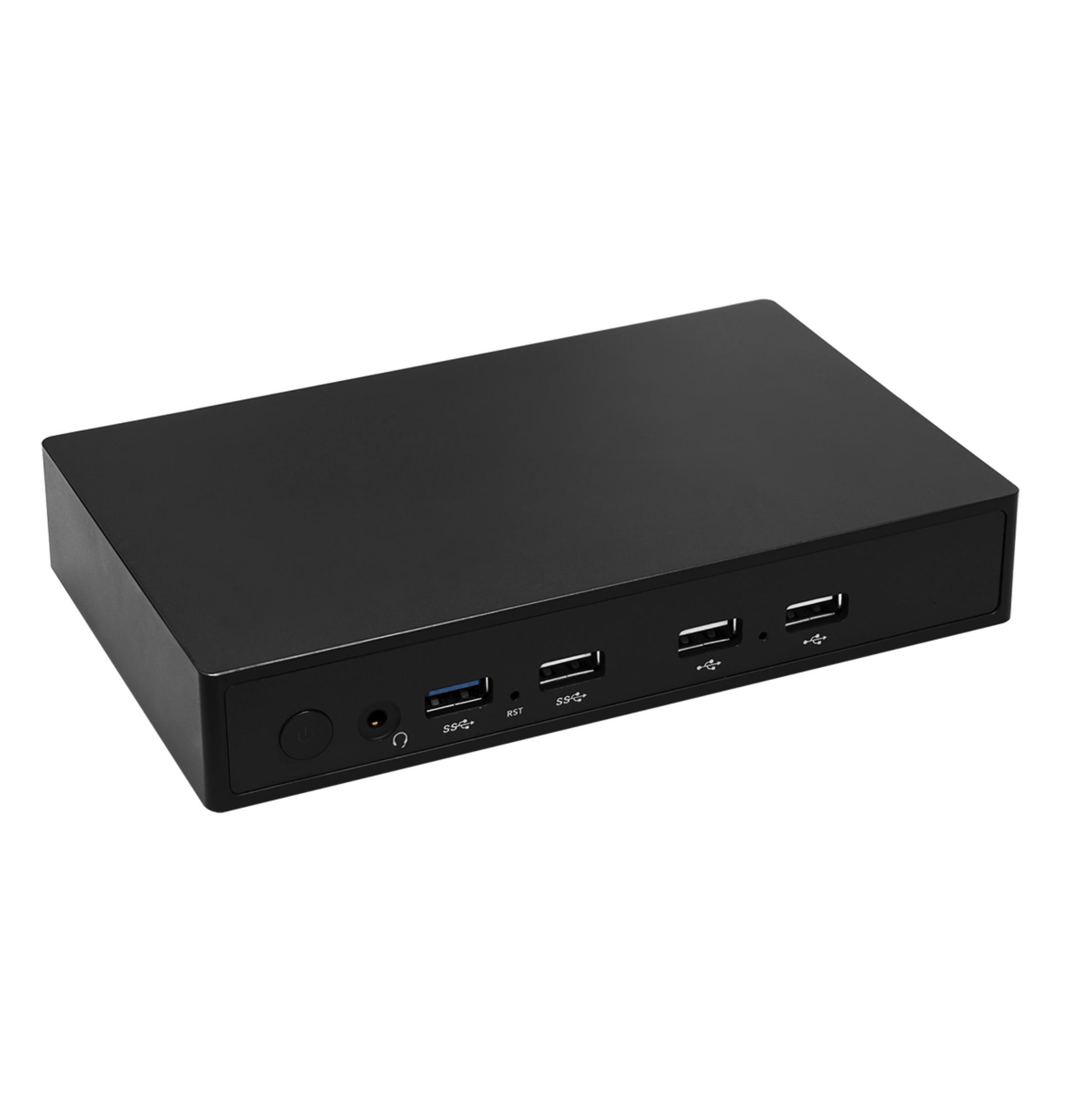

TVD3503R
- High-efficiency computing power: Built-in 1TOPS NPU, supporting INT4/INT8/INT16 mixed operations, accelerates lightweight AI applications
- Professional display output: Mali-G52 GPU supports high-resolution displays, enabling a smooth multimedia playback experience
- Extreme energy efficiency: 5W ultra-low power consumption design, small size, light weight, and easy to carry
- Full interface configuration: Dual Gigabit Ethernet ports + multiple USB + HDMI, meeting the needs of office peripheral expansion
- Industry scenario adaptation: Pre-installed Debian10 system, plug and play, supporting deployment in smart office/education/medical scenarios
- Main parameters
- Application Manual
- Doc Download
-
Product Model
TVD3503R Product Description
Cloud Terminal Processor
CPU RK3568，ARM Cortex A55 4 core 2.0GHz GPU Mali-G52 NPU Integrated Operating System
Debian10 Memory
DDR4 2/4GB Storage
EMMC 8/16/32/64GB Network and Connectivity
Wired Network 2*RJ45，10/100/1000Mbps (Optional internal and external network switching) Cellular Network None Wireless Network WIFI6/WIFI5 (Optional) NFC None Bluetooth None Audio and Video
Display Unit 1*HDMI，1*VGA (Optional) Speaker None Camera None I/O and Display Interfaces
SATA Interface 3*MiniSAS (12*SATA hard drives) GPIO None Audio Interface 1*AUDIO SIM/TF None USB Interface 6*USB2.0，2*USB3.0 Display Interface 1*HDMI，1*VGA (Optional) SD Card Interface None Other Serial/Parallel Port None Buttons
1*Power Button Power Supply
DC_in 12V Battery
None Operating Environment
Temperature 0℃~60℃，Humidity 5%-90% non-condensing Dimensions
170mm*105mm*29mm Weight
530g Certification
None Standard Accessories
Power Cord
