TVI7505X

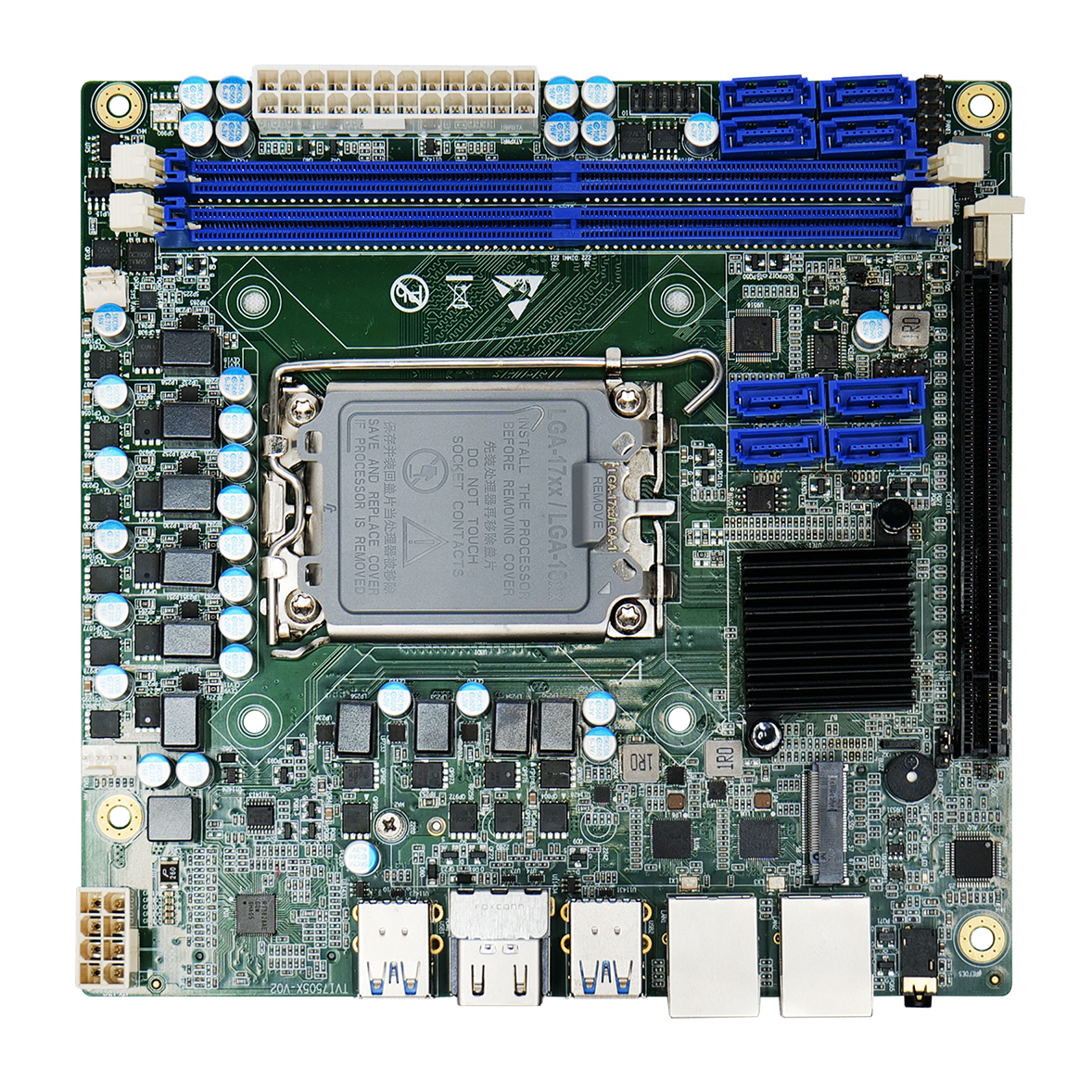

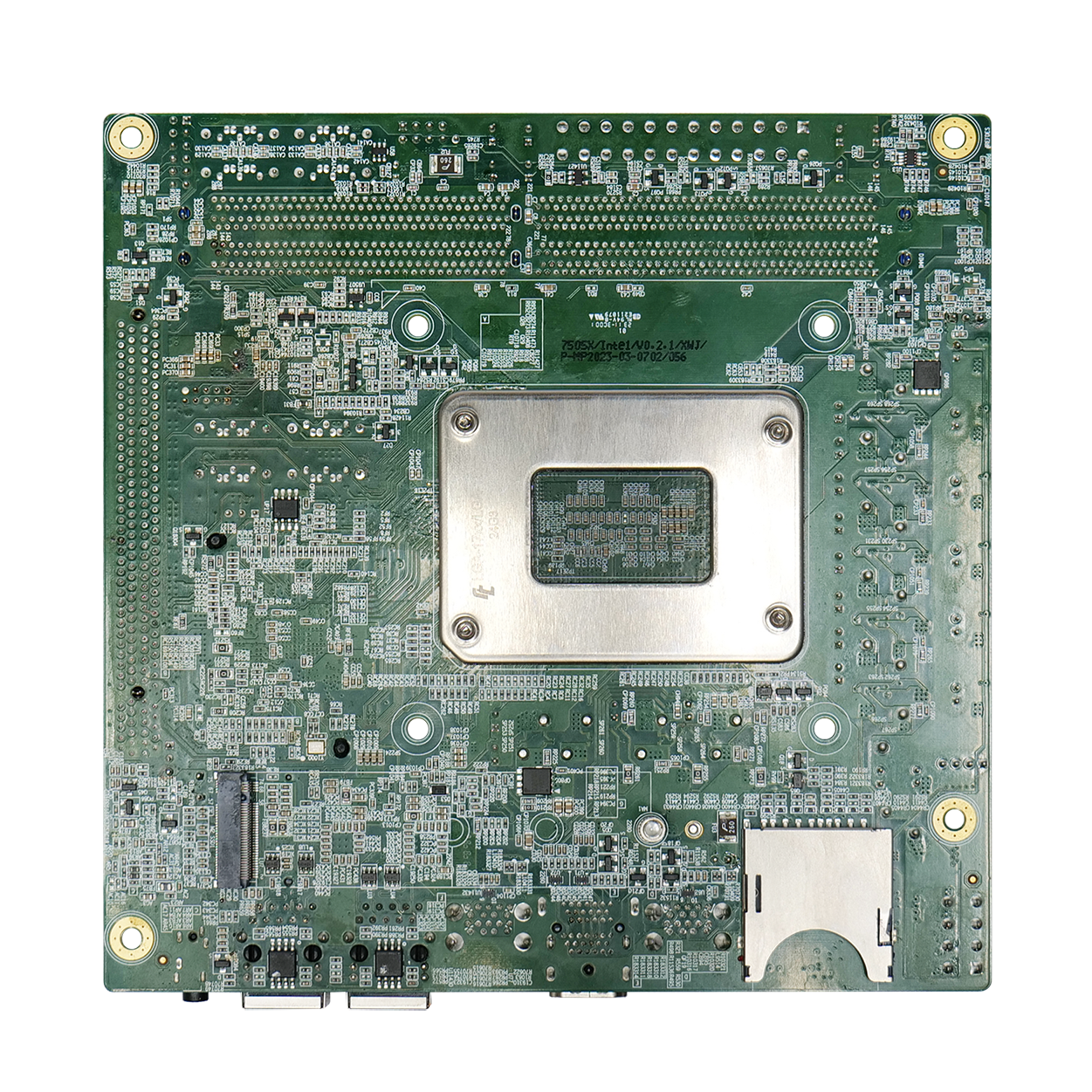

The TVI7505X NAS motherboard is based on the Intel ADL-S LGA1700 12th generation I3/I5/I7 processor, with rich IO interfaces and 8*SATA interfaces, making it an expert in large-capacity hard drive management. The product can be widely used in smart city, smart business, and smart education industries.

Based on Intel ADL-S LGA1700 12th generation I3/I5/I7 processors
Rich interfaces, flexible expansion; integrates multiple USB and HDMI ports, equipped with a PCIE X16 slot, supports a variety of peripherals and storage expansion, meeting diverse application needs
Dual 2.5G network ports, plug and play, high-speed transmission
Supports 2*M.2 SSD, 8*SATA, worry-free storage

A single board computer integrates CPU, memory, storage, and interfaces on one compact board, offering efficient performance for embedded and IoT projects.

A single board computer is a compact, integrated system that combines CPU, memory, storage, and essential I/O interfaces on one board, delivering reliable performance for embedded, industrial, and IoT applications.

Main parameters
Application Manual
Doc Download

Product Model	TVI7505X
Product Description	Mini_ITX NAS Motherboard
Processor	CPU	Intel ADL-S LGA1700 12th Gen I3/I5/I7
	GPU	None
	NPU	None
Operating System	Linux, Windows
Memory	4/8/16/32/64G DDR4
Storage	2M.2 SSD、8SATA
Network and Connectivity	Wired Network	2*RJ45 2.5G Network Ports	Cellular Network	None
	Wireless Network	None	NFC	None
	Bluetooth	None
Audio/Video	Display Unit	2*HDMI
	Speaker	None
	Camera	None
I/O Interfaces and Display Interfaces	SATA Interface	8*SATA3.0	GPIO	None
	Audio Interface	1*AUDIO	SIM/TF	None
	USB Interface	4*USB3.0	Display Interface	2*HDMI
	SD Card Interface	Supported	Other	1PCIE X16 slot, 1F_USB pin header
	Serial/Parallel Port	None
Buttons	1 * F_PANEL
Power Supply	ATX
Battery	None
Operating Environment	Temperature 0℃~60℃, Humidity 5%-90% non-condensing
Dimensions	170mm*170mm
Weight	None
Certification	None
Standard Accessories	None
