TVE1211U
- Based on a processor with 1 large A76 core @ 2.7GHz + 3 large A76 cores @ 2.3GHz + 4 small A55 cores @ 2.0GHz
- 11.97-inch IPS display, 2000x1200 resolution
- Supports active stylus
- Supports dual-band dual-antenna WIFI 5
- Supports 5G full-band connectivity

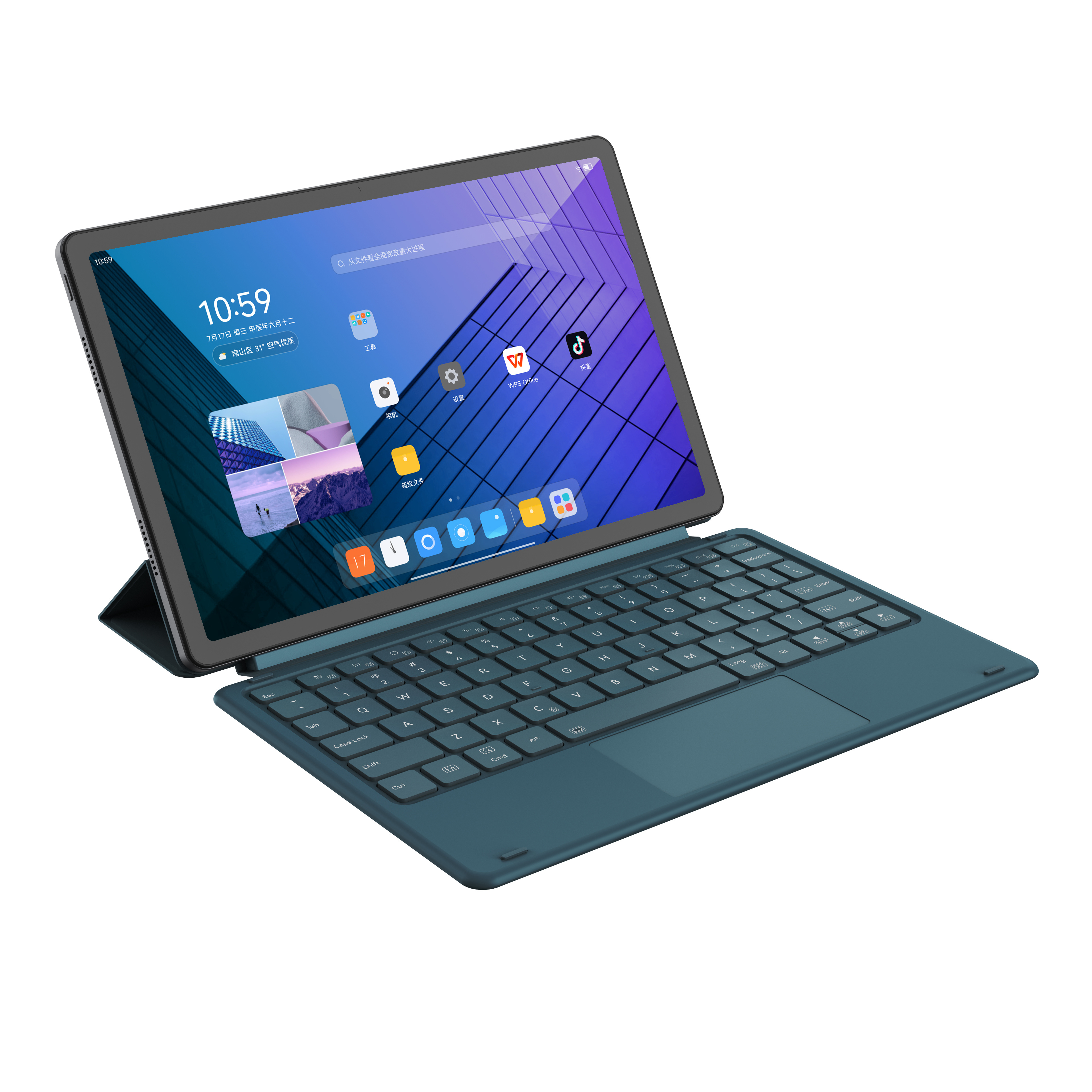

- Supports magnetic keyboard
- Main parameters
- Application Manual
- Doc Download
-
Product Model
TVE1211U
Product Description
5G Mobile Office Cloud Tablet
Processor
CPU
T820，1*Arm Cortex-A76 large core @2.7GHz+3*Arm Cortex-A76 large core @2.3GHz+4*Arm Cortex-A55 small core @2.1GHz
GPU
Arm Mali-G57 MC4，850MHz
NPU
8 TOPS
Operating System
Android 14
Memory
LPDDR4X 6GB-8GB
Storage
EMMC 128GB-256GB
Network and Connectivity
Wired Network
None
Cellular Network
5G Full Netcom
Wireless Network
WIFI5 2x2，Beidou/GPS
NFC
None
Bluetooth
BT5.0
Audio and Video
Display Unit
11.97 inch, 2000x1200, IPS,
Speaker
4xBOX large speaker
Camera
Front 8MP, fixed focus, rear 13MP, autofocus, supports flash
I/O Interfaces and Display Interfaces
SATA Interface
None
GPIO
None
Audio Interface
φ3.5, CTIA mode; 2x microphone input
SIM/TF
2xSIM or 1xSIM+1xTF
USB Interface
1xUSB3.0 TypeC full-function
Display Interface
None
SD Card Interface
None
Other
Magnetic keyboard interface
Serial/Parallel Port
None
Buttons
Power, VOL-, VOL+
Power Supply
20W PD fast charging
Battery
8000mAH/3.8V
Operating Environment
Operating temperature: 0~45℃ Storage temperature: -20~60℃
Dimensions
280.5mmx176.32mmx8.0mm
Weight
580g
Certification
CCC，SRRC，CTA
Standard Accessories
Adapter, data cable, card pin
